液壓系統平衡回路
為了防止立式液壓缸或垂直運動的工作部件由于自重而自行下滑．可在 液壓系統中設置平衡回路。即在立式液壓缸或垂直運動的工作部件的下行回路上設置適當的阻力，使其回油腔產生一定的背壓，以平衡其自重并提高液壓缸或垂直運動的工作部件的運動穩定性。
下面我們一起來解決單向順序閥的平衡回路和液控單向閥的平衡回路。
（一）用單向順序閥的平衡回路

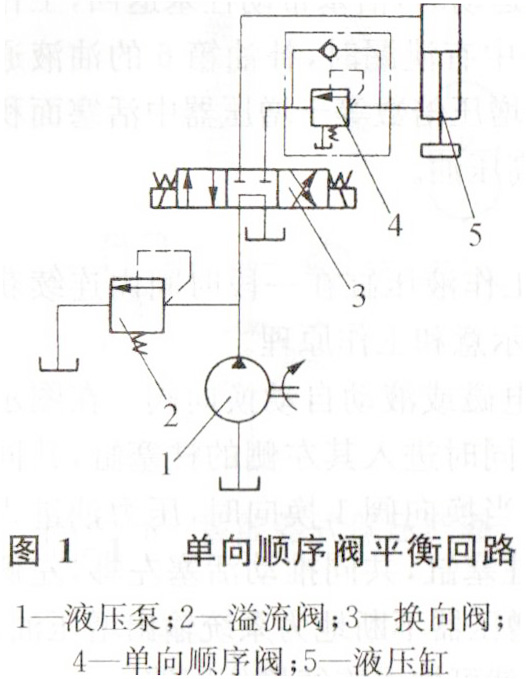

圖1所示為由單向順序閥組成的平衡回路。順序閥4的調整壓力應該稍微大于工作部件的重量在液壓缸5下腔形成的壓力。當液壓缸5停止時，由于順序閥4的泄漏，運動部件仍然會緩慢下降。
（二）用液控單向閥的平衡回路

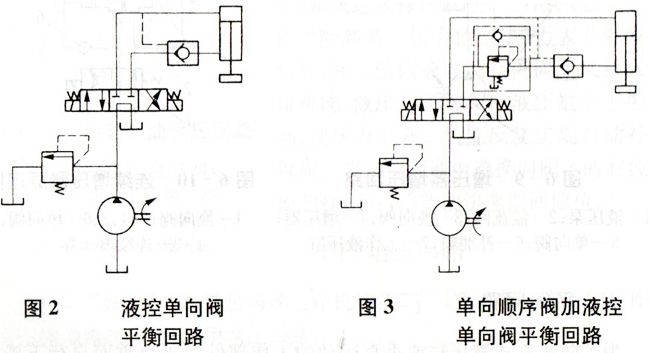

圖2所示為由液控單向閥組成的平衡回路，是將圖1中的單向順序閥換成液控單向閥。
當換向閥3左端動作時，壓力油進入液壓缸5上腔，同時打開液控單向閥，活塞和工作部件向下運動；當換向閥3處于中位時，液壓缸5上腔失壓，關閉液控單向閥，活塞和工作部件停止運動。液控單向閥的密封性好，可以很好地防止活塞和工作部件因泄漏而緩慢下降。活塞和工作部件向下運動時，回油油路的背壓小，因此功率損耗小。
如圖3所示，在圖1中的單向順序閥4的后面再串聯一個液控單向閥，就組成了單向順序閥加液控單向閥的平衡回路。
液壓缸液控單向閥可以防止單向順序閥的泄漏而造成的工作部件緩慢下滑，而單向順序閥可以提高回油腔的背壓和油路的工作壓力，使液控單向閥在工作部件下行時始終處于開啟狀態，
本文由蘇州逐利機電整理發布，如需轉載請瀏覽來源及出處，原文地址：http://m.mfchsuyu.cn/yyf/546.html
